Atom Neon +R12

A set of 8 dimmers for controlling low-voltage loads with DC consumption and 16 relay outputs will provide control of various low-power loads.

1054,00  +PVM

- - -

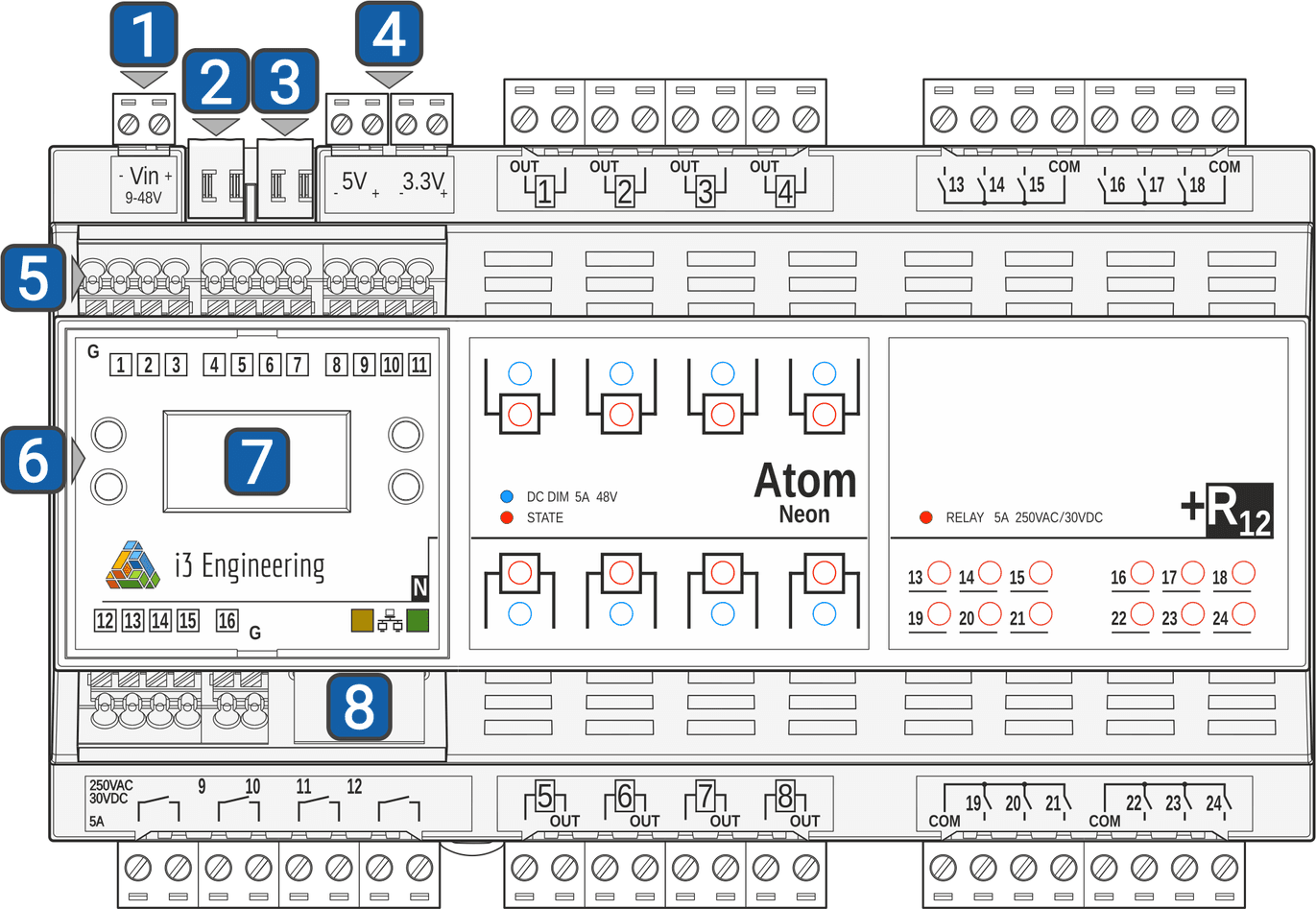

Functional elements

Atom Carbon N with numbers
1. 9-48V DCPower supply
2. CAN bus ensures synchronized operationof all Atom series devices
3. Integrate 3rd party devicesusing RS-485 interface
4. 5V and 3.3V portsfor sensors power supply
5. 22 multifunction input ports (16 in N modification)for temperature, air quality, water leakage sensors and switches connection
6. Buttonsfor navigation and control of the OLED display menu
7. Graphic OLED displayfor control and monitoring (optional for N modification)
8. Ethernet port for network connectionpossibility of remote control using the phone or voice assistants (N modification)
